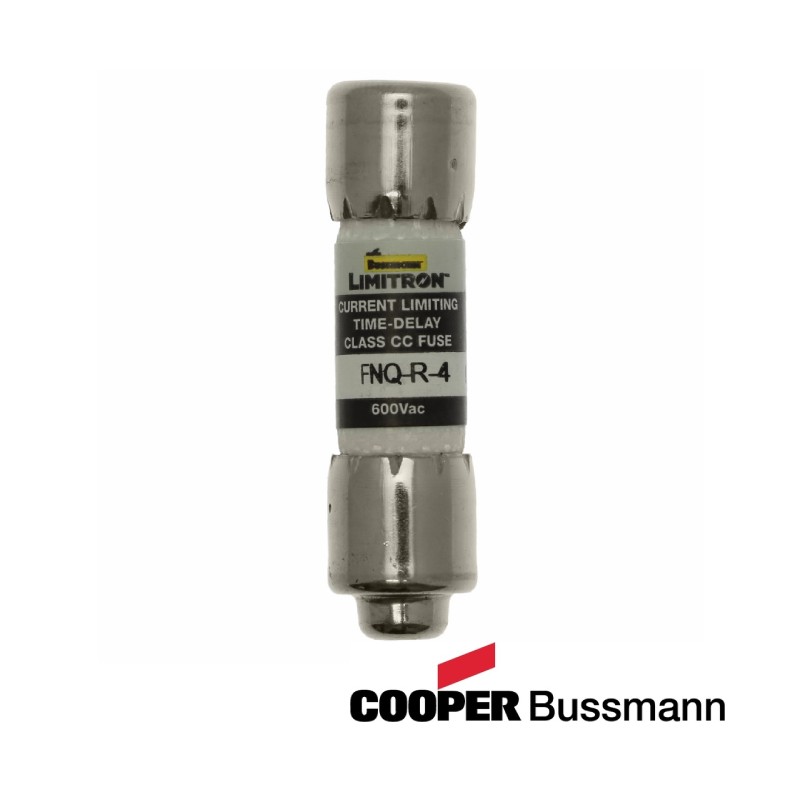

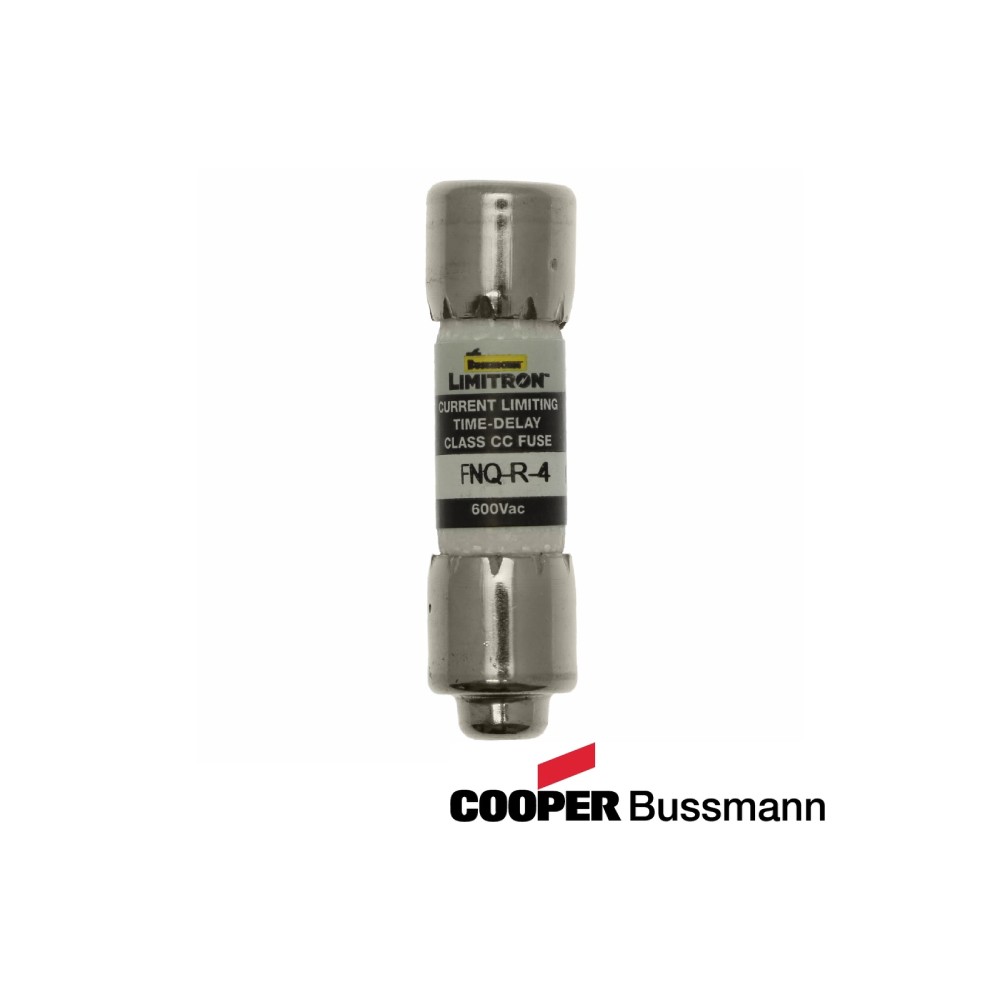

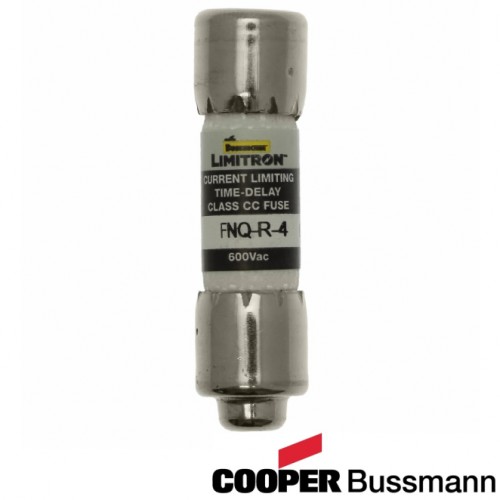

Eaton Bussmann series FNQ-R fuse, Rejection style, 600V, 4A, 200 kAIC, Non Indicating, Current-limiting, high inrush, time delay, Ferrule end X ferrule end, Class CC, Melamine tube
GENERAL SPECIFICATIONS
- PRODUCT NAME : Eaton Bussmann series FNQ-R fuse
- CATALOG NUMBER : FNQ-R-4
- UPC : 051712147095
- EAN : 5027590060363
- PRODUCT LENGTH/DEPTH : .41 IN
- PRODUCT HEIGHT : 1.5 IN
- PRODUCT WIDTH : .41 IN
- PRODUCT WEIGHT : .15 LB
- WARRANTY : Not Applicable
- COMPLIANCES : RoHS Compliant , CE Marked
PRODUCT SPECIFICATIONS
- FUSE INDICATOR : Non-indicating
- SPECIAL FEATURES : Rejection style
- INTERRUPT RATING : 200 kAIC
- TYPE : Current-limiting, high inrush, time delay
- CONNECTION ; Ferrule end x ferrule end
- RESPONSE TIME : 12 sec at 200%
- CLASS : Class CC
- MATERIAL : Melamine tube
- VOLTAGE RATING : 600 V
- APPLICATION : Line protection, small control transformers, industrial control, branch circuits
- AMPERAGE RATING : 4 A
- PACKAGING TYPE : Standard
